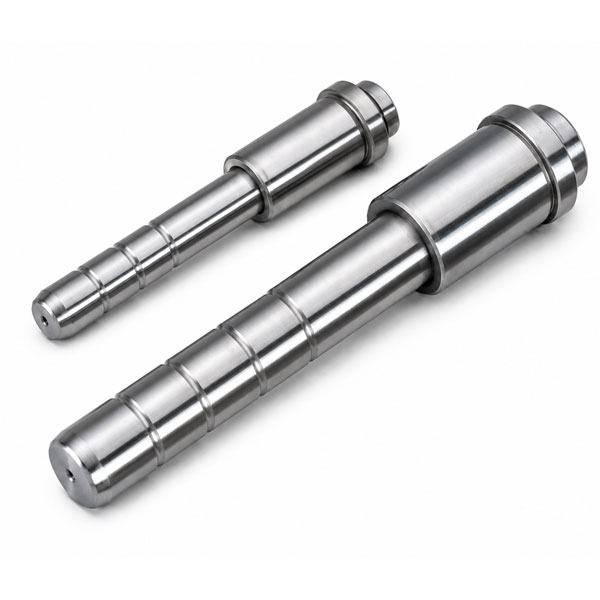

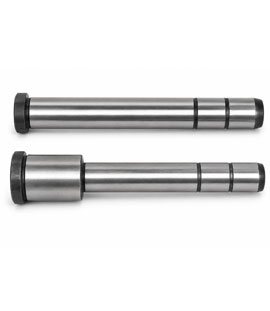

Guide Pillar

guide pillar bushes are precision-engineered components used in die sets, press tools, and mould assemblies to ensure accurate alignment between moving and stationary sections. Manufactured from high-quality hardened steel, they provide excellent wear resistance, rigidity, and smooth operation. Working in conjunction with guide bushes, guide pillar bushes help maintain precise positioning, reduce friction, and prevent misalignment during production cycles. Widely used in stamping, punching, injection moulding, and die casting applications, they enhance tool life, improve product quality, and ensure reliable, consistent manufacturing performance.

High-precision die casting components for the automotive, engineering, electrical and industrial sectors: solid core pins, H13 core pins, ejector sleeves, ejector pins, guide pillars, guide bushes, plunger pins and cast die sleeves – engineered to withstand high temperature, pressure and continuous production cycles.

Where it is used

• Aluminium & zinc die casting
• Cooling and core pin systems
• Plunger & shot sleeve assemblies
• Automotive cast parts
